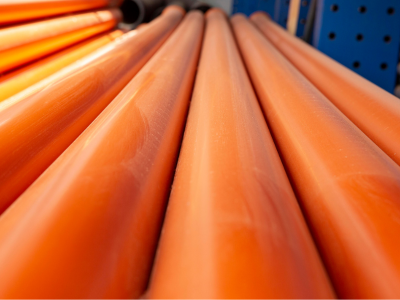

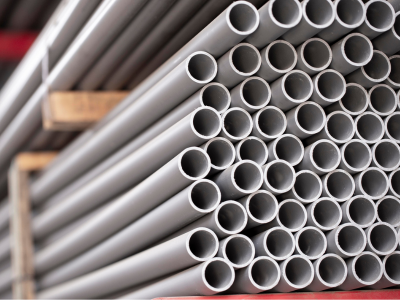

PIPES
TYPES:
- Seamless
- Electric Resistance welded(ERW)
- Submerged arc welded(SAW) (logitudinal,spiral)
MATERIAL TYPES
Carbon Steel,
Stainless Steel & Alloy Steel,
Copper & CU-Ni Alloys
SIZE RANGES
Seamless 1/4″ to 24″ Dia. ERW SAW 1/4″ to 24″ Dia. Longitudinal – 16″ to 60″ Dia. Spiral – 18″ to 120″ Dia
WALL THICKNESS
Seamless Sch. 40 to XXS ERW SAW Sch. 10 to XXS Longitudinal 10 to XXS
LENGTH
Seamless Spiral – 10 to XXS 6-12 18m Standard – 6-12 m Standard ERW SAW – 6-12 12m
MATERIAL GRADES
API 5L PSL-1 & PSL-2- X46, X52, X56, X60, X65, X70, X80 ASTMA53-GradesA& B ASTMA178 Grade A 25, A, B, X42, ASTM A 106 Grade B ASTMA192 ASTM A 519-All Grades ASTMA587 ASTM A312 0 TP 304/304U316/316U321/347/ 348 ASTM A 333- Grades – 1/3/4/7/8/9/10/11
FINISHING
Bare
Black
GalvanizedPlain Ends (GPE) Coated (3LPE) , Bevel Both Ends (BBE) for 2″ and above

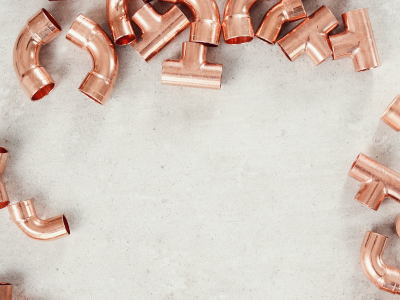

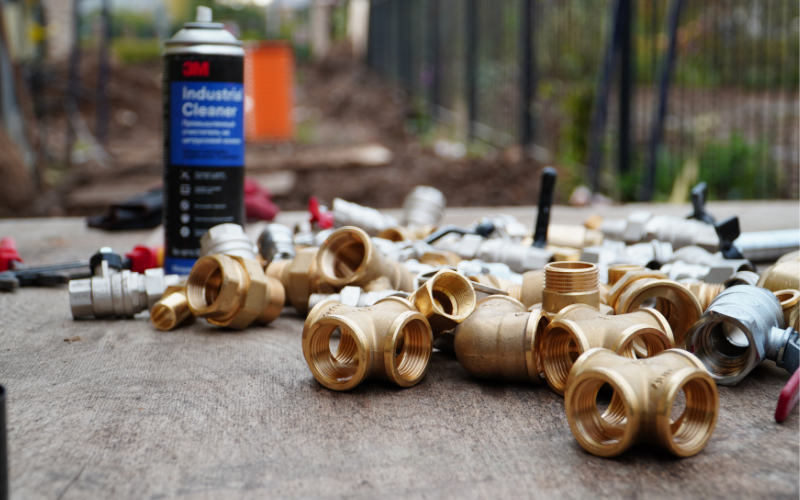

FITTINGS
1. BUTT-WELD FITTINGS
TYPES:
Elbows 45, 90 & 180 (long and short radius Concentric & Eccenbic Reducers
Equal & Reducing Tees
SIZE RANGES
Carbon&Alloy Steels
Seamless: 1/4″ to 20″
Welded: 20″ to 72″
Stainless Steels Seamless: 1/2″ to 16″
Welded: 1/2″ to 24″
MATERIAL GRADES
Carbon, Alloy & Stainless steels
ASTM A 420 WPL 3/61819
ASTM A 234 WPB, WPC & WPI ASTM A 860 WPHY 42, 46, 50, 60, 65 & 70 ASTM A 403 WP 304, 304L, 316, 316L, 321
WALL THICKNESS
Carbon&Alloy Steels
Sch.10 to xxs
Stainless Steel
Sch.55, 105, 405, & 80S
2. FORGED FITTINGS
TYPES:
Elbows 45, 90 Half & Reducing couplings
Equal & Reducing Tees
Caps
Hex, Round & Square Head Plugs Hex Head Bushings
Female-Male Reducers
Hex & Reducing Hex Nipples
Welding Bosses
Unions
Welding, Threadolets & Sockolets
Concentric & Eccentric Swage Nipples (Threaded (NPT) & Socker Weld (SW) as applicable)
MATERIAL GRADES
Carbon, Alloy & Stainless steels ASTMA105
ASTM A 350 LF2 & LF3
ASTM A 182 F5, F11 C12, F22 C13 ASTM A182 F304 L, F 316 L, F 321, F 347
SIZE RANGES
1/8″ to 4″
PRESSURE RATING
Threaded:2000#,3000#,6000# Socket Weld: 3000# & 6000#

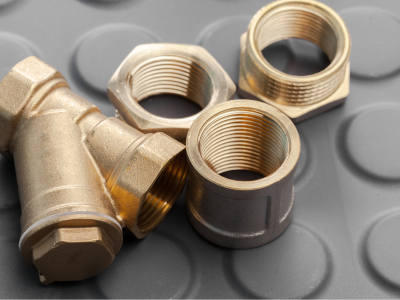

3. MALLEABLE IRON FITTINGS
TYPES:
Elbows 45 & 90
90 steel Elbows Half & Reducing Couplings Equal & Reducing Tees Caps Hex, Round & Square Head Plugs Female-Male Reducers
Hex Head Bushings
Hex & Reducing Hex Nipples
Welding Bosses
Unions
Welding, Threadolets & Sockolets Concentric & Eccentric Swage Nipples
(Threaded(NPT/BSPT)

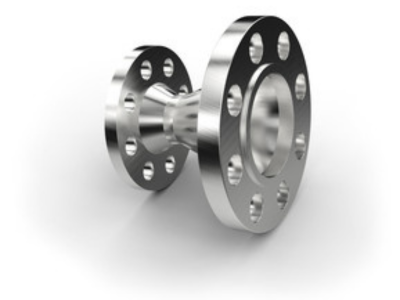

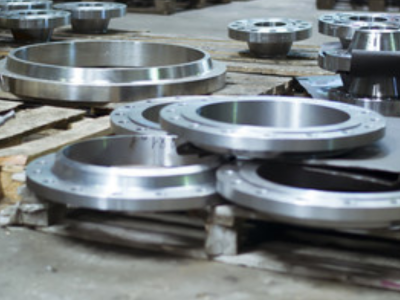

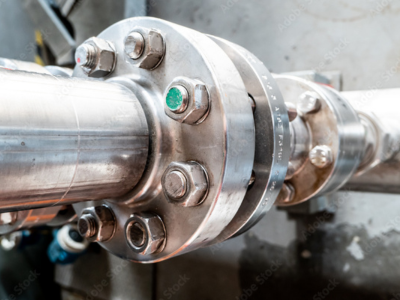

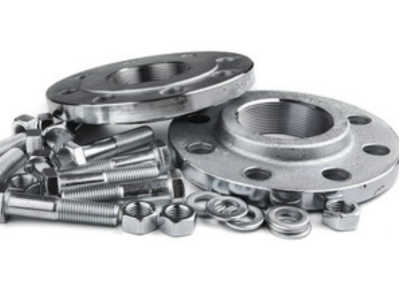

FLANGES
TYPES:
- Slip-on flange
- Weld Neck Flange
- Threaded Flange
- Blind Flange
- Socket weld flange
- Lap joint Flange
SIZE RANGES
1/4″ to72″
1/4″ and Above -As per ASME B 1647
SCHEDULE OR WALL
THICKNESS
Sch. 40 to Sch. XXS
CLASS
150#, 300#, 600#, 900#, 1500#, 2500#
FACINGS
Flat, Raised, Ring-Joint
MATERIAL GRADES
Carbon, Stainless and Alloy steels Forged Grade A 105N, A182 Gr. F6, F 304, F316, F316L, F44, F 51, F 53, F 55, Duplex SS& Nickel Steel
API 6B ,ASTMA 105, ASTM A 182 Grade F1, 2, F5, F9, F11 Class 2, F12 Class 2, F 22 Class 3, F 304, F 304 L,F 316, F 316 L, F 321, F 347, F 348, F 310
ASTM A 350 Grade LF 1, LF 2, LF 3

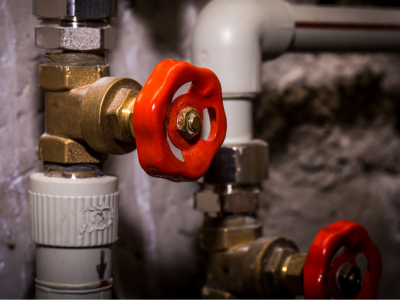

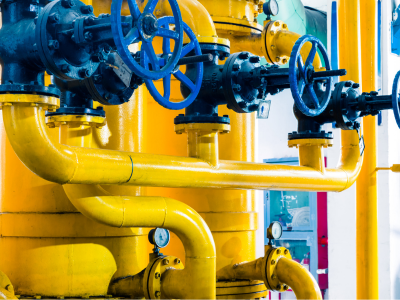

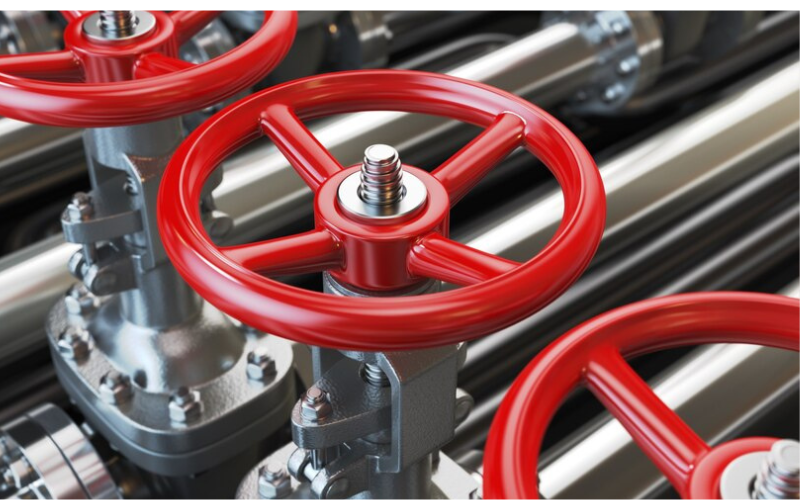

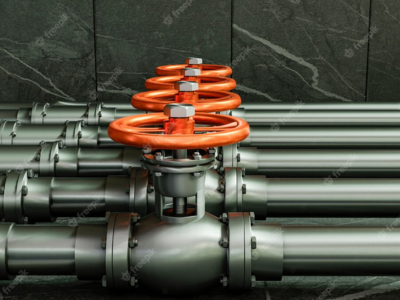

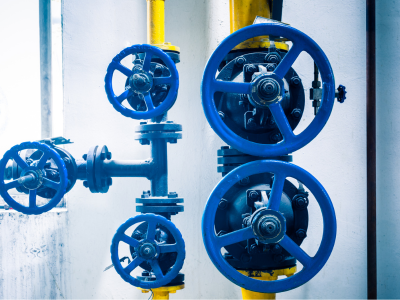

VALVES

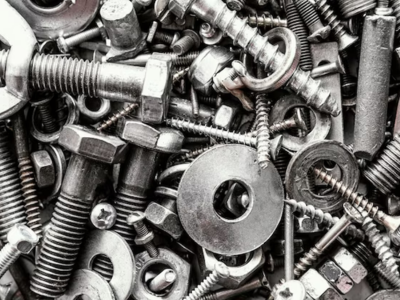

GASKETS & STUD BOLTS
TYPES:
Compressed Fiber, PTFE, Metal clad, Graphite, Spiral wound, Metallic, Cut gasket.
Materials: ASTM, F104, API 601, CNAF
Dimension: ANSI B 16.5, B 16.20, B 16.21, MSS SP 44
Sizes: To suit various services/l Class
