Insulation Kit Gaskets
Insulation Kit Gaskets
Flange Insulation Kit Gaskets are designed to combat the effects of corrosion often found in flanged pipe system. Galvanic corrosion between dissimilar metal flanges, flange insulation associated with cathodic protection of underground piping are other examples where flanges insulating Kit Gasket can be put to effective use.
The Design and selection of materials used in Flange Insulation Kit Gasket, meet the twin purpose of sealing the flanges and insulating metal parts to prevent flow currents responsible for corrosion.
Range: Insulation Kit Gasket
We design, manufacture & supply Flange Insulating Kit Gasket in three types:
- TYPE-E for full face flanges
- TYPE-F for raised face flanges
- TYPE-D gaskets specifically designed to fit into the grooves of RTJ Flanges

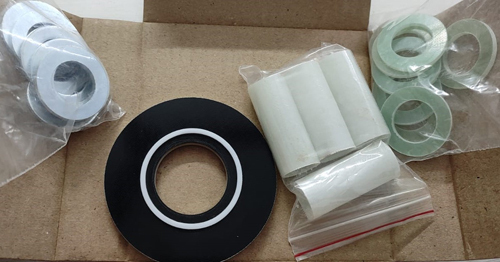

Flange Insulation Kit Gasket will comprise of:
Range: Insulation Kit Gasket
We design, manufacture & supply Flange Insulating Kit Gasket in three types:
- TYPE-E for full face flanges
- TYPE-F for raised face flanges
- TYPE-D gaskets specifically designed to fit into the grooves of RTJ Flanges
Flange Insulation Kit Gasket will comprise of:
Insulation Gaskets for Type "F" Raised Face Flanges
Available for use in ANSI B16.5, API, BS & DIN Standard. In this type, the central gasket is designed to be located inside the flange bolt circle and sits fully on the raised face portion of the flange. This type of gaskets will be supplied in all the materials as shown in “Materials Used ” Table below.
Insulation Gaskets for Type "F" Raised Face Flanges
Available for use in ANSI B16.5, API, BS & DIN Standard.
In this type, the central gasket has its outside diameter as equal to that of flange outside diameter and precision cut bolt holes. This design helps easy alignment of the gaskets during installation. Type “E” gaskets are available in Neoprene faced reinforced phenolic material or other materials as shown in “Materials Used “ Table below.
Insulation Gaskets Type "D" for Ring Gaskets
Available for use in ANSI B16.5, API, BS & DIN Standard In this type the gaskets available in fabric reinforced Phenolic. Available in basic “oval & octagonal” type. This type has the contact faces with oval shape. It provides a high reliability seal. These gaskets comply with ASME B – 16.20.
Materials Used
| Category | Insulation Gasket | Insulation Sleeve | Insulation Washer | Plated Washer |
|---|---|---|---|---|
| Standard | Neoprene Faced Phenolic | Reinforced Phenolic | Reinforced Phenolic | Electro Plated Steel Washer |
| Special | Neoprene Faced Phenolic | Nylon | Nylon | — |
| — | — | Mineral Filled Nylon | Mineral Filled Nylon | — |
| — | — | Polyethylene | Polyethylene | — |
| Glass Reinforced Epoxy (G-10) | Glass Reinforced Epoxy (G-10) | Glass Reinforced Epoxy (G-10) | Glass Reinforced Epoxy (G-10) | — |
Properties of Materials Used in Flange Insulation Gasket Kits
| Material | Dielectric Strength (Volts / MIL) | Water Absorption (%) | Max. Continuous Operating Temp. (°C) |
|---|---|---|---|
| Polyethylene | 450 | 0.01 | 41 |
| Phenolic | 400 – 500 | 1.1 | 107 |
| Nylon | 457 | 1.5 | 110 |
| G10 | 550 | 0.01 | 138 |
| G11 | 550 | 0.01 | 177 |
When Ordering Please specify
- Gasket Style
- Flange standard
- Nominal pipe size
- Pressure & Temperature of Service
- Preferred material of construction
